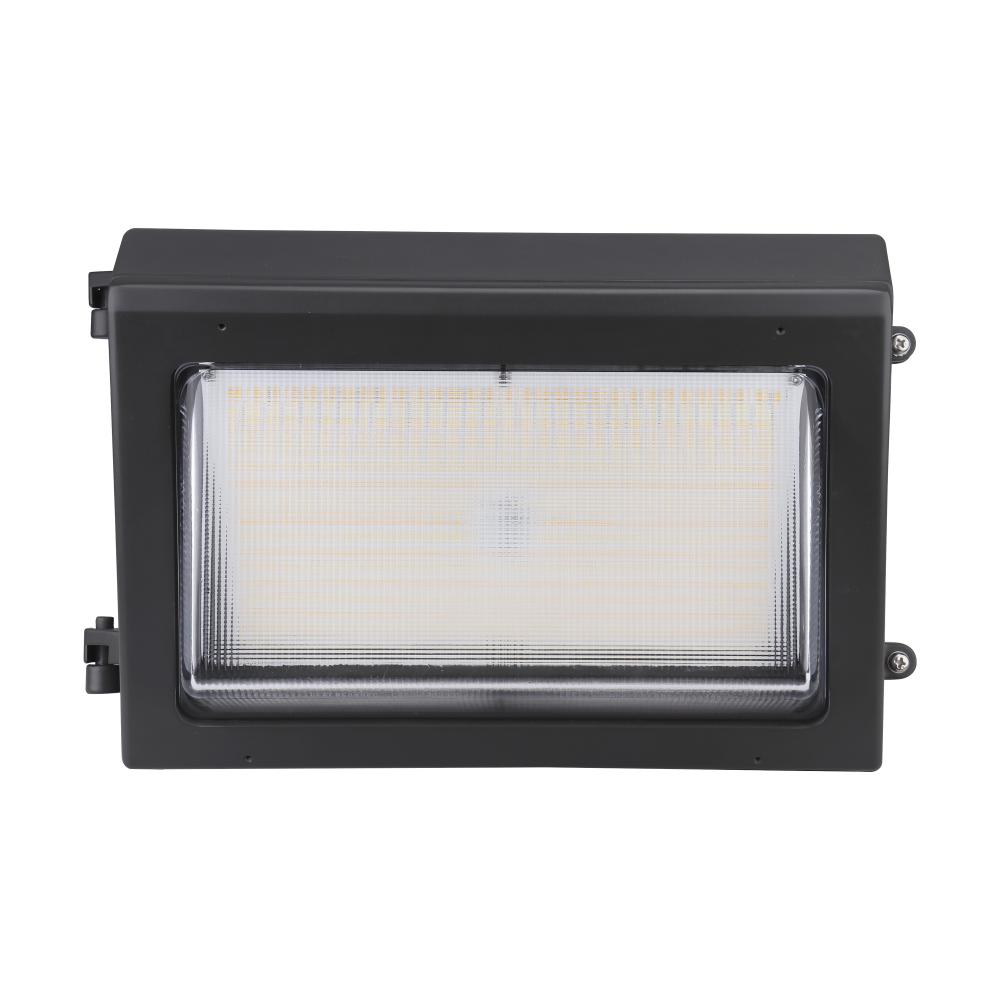

CCT and Wattage Adjustable LED Wall Pack; Integrated Bypassable Photocell; CCT Selectable from 3000,
$224.00
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
Manufacturer has 84 items available.
Dimensions
Height: 9.35"
Width: 14.36"
Product Overview
CCT and Wattage Adjustable LED Wall Pack; Integrated Bypassable Photocell; CCT Selectable from 3000, 4000 or 5000K; Wattage Selectable from 29, 40, or 60 Watt; 120-347 Volt
Standard Information
Category:
Exterior
Sconces
Subcategory:
Wall Lights
Outdoor Wall Lights
Finish:
Bronze
Style:
Traditional
Option:
LED
Prop 65
Lumens:
3300+
Kelvin:
4001-4500
Refinement Options
Category:
Wall Pack
Sub Category:
Standard
Style:
Traditional
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Dimmable:
Yes-Dimmable
Each Height:
9.84
Each Length:
15.63
Each Width:
11.69
Lumens:
4118L-8770L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Amps:
0.242-0.084/0.333-0.115/0.500-0.173A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
110
B_U_G_Rating:
B1-U4-G5
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires
Each Cube:
1.0405
Each Quantity:
1
Efficacy:
142.00/161.10/146.17 LPW
FCC Compliant:
Yes
Feature 1:
Wattage Selectable 29W/40W/60W
Feature 2:
CCT Selectable 3000K/4000K/5000K
Feature 3:
Integrated by-passable photocell
Feature 4:
4KV Surge Protection
Feature 5:
50,000 Hours
Feature 6:
DLC Premium
Feature 7:
5 Year Warranty
Finish Family:
Bronze
HID Equiv:
75W-175W
Incandescent Equivalent:
200W-500W
Indoor Outdoor:
Indoor;Outdoor
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Lens Material:
Glass
Long Description:
Introducing 65-757, SATCO|NUVO's new CCT and Wattage selectable wall pack with integrated bypassable photocell. This cULus certified wall pack is offered in a traditional style with 29W/40W/60W wattage configurations, CCT selectable temperatures of 300
Material:
Die-Cast Aluminum
Mounting Procedure:
Wall
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +50C (+122F)
Pack Type:
Box
Photocell:
Yes - Bypassable
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Introducing SATCO|NUVO's new CCT and Wattage selectable wall packs with integrated by-passable photocells. These cULus certified wall packs are offered in a traditional style and semi-cutoff style in two wattage configurations, 29W/40W/60W and 80W/100W
Safety Listing:
cULus - Listed
SDS class:
LED_Fixture
Short Description:
LED WALL PACK CCT & WATT ADJ
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
15%
Wattage Selectable:
Yes
Weight Lb.:
9.5
