TriAire Custom Marine Motor - BLM
Image may not reflect selected features
/vendors/90/large/MAD8514BLM.jpg
additional image

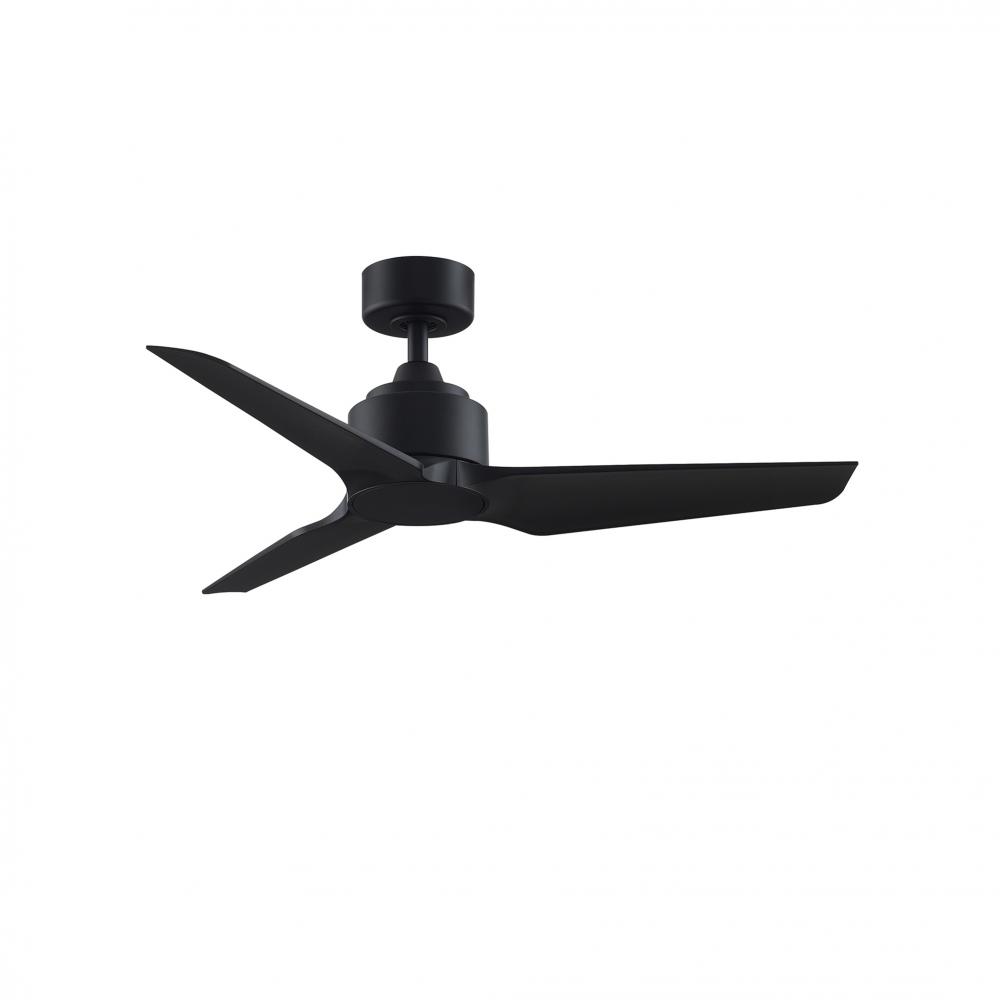

TriAire Custom Marine Motor - BLM (MAD8514BLM) by Fanimation
TriAire Custom by Fanimation fits any style in any location. This TriAire Custom ceiling fan motor features Marine grade finishes in Black or Matte White, that can be used in any indoor or outdoor location in the home. TriAire Custom Marine has a 31 speed DC motor and TR305 handheld remote included. Can be used in any dry, damp or wet location. Downrod, sloped or flush mount capability. Can be controlled using the Fanimation Bluetooth fanSync app. Reversible airflow for multi-season use. Eight different blade sweeps in multiple finishes and an LED CCT Select Light Kit are available (sold separately).
Downloads
Product Specification
Item #
MAD8514BLM
Dimensions
Height: 12.42"
Width: 44.00"
Length: 44.00"
Additional product details
Vendor Item #
MAD8514BLM
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Black
Option
Energy Star , Wet Rated
Voltage
10-99
Number of Blades
3 Blades
Wattage
8w
Category
Fan-Multi
Finish
Black
Option
Energy Star , Wet Rated
Family
TriAire Custom
Voltage
120V
Air Flow CFM
6765
Air Flow Efficiency
230
Blade Pitch
14
Canopy
5.75 Dia, 2.57 H
Harmonized Codes
8414.51.3000
Length
44, 48, 52, 56, 60
Max Width
60
Motor Size
158 X 22
Motor Type
DC
Ship Carton Height
8.35
Ship Carton Length
15.94
Ship Carton Width
8.86
Ship Weight
13.6
Sold By
Each
Warranty
Limited Lifetime
Weight
12.19
Airflow Efficiency Low
357
Airflow Efficiency Medium
503
Avg Airflow Efficiency
247
Avg CFM Energy
4860
Avg Energy Use Watts
20
Avg Estimated Yearly Energy Cost
6
Avg Estimated Yearly Energy Cost on HIGH
8
Canopy Diameter
5.75
Canopy Height
2.57
Cap Included
Yes
Case Quantity
1
CEC Uploaded
Yes
Ceiling To Blade Edge
12.92
Ceiling to Bottom No LK
12.42
Ceiling to Bottom with LK
14.62
CFM Low
821
CFM Medium
4222
Compatible Accessories
CCK8002BLW, DR1-CPBL, DR1SS-12BLW, DR1SS-18BLW, DR1SS-24BLW, DR1SS-36BLW, DR1SS-48BLW, DR1SS-60BLW, DR1SS-72BLW, SCB1-52
Compatible Blades
BPW8514-44BLW, BPW8514-44DWAW, BPW8514-44MWW, BPW8514-44SLW, BPW8514-44WEW, BPW8514-48BLW, BPW8514-48DWAW, BPW8514-48MWW, BPW8514-48SLW, BPW8514-48WEW, BPW8514-52BLW, BPW8514-52DWAW, BPW8514-52MWW, BPW8514-52SLW, BPW8514-52WEW
Compatible Blades-2
BPW8514-56BLW, BPW8514-56DWAW, BPW8514-56MWW, BPW8514-56SLW, BPW8514-56WEW, BPW8514-60BLW, BPW8514-60DWAW, BPW8514-60MWW, BPW8514-60SLW, BPW8514-60WEW
Compatible Light Kits
LK8514BLM
Compatible Wall Controls
TW306
Country of Origin
China
Current Draw High
0.42
Current Draw Low
0.04
Current Draw Medium
0.13
DOE Classification
LSSD
DOEFTC Uploaded
Yes
Downrod Length
4.5
Exempt from DOE Procedure
No
Fan Energy Star
Yes
Housing Diameter
7.09
Included Control
TR305
Included Control Type
Handheld
Leadwire
80
Max Ceiling Slope
27
Max Watt
29
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
3
Number Of Speeds
16
Regulated Product
Yes
Reverse Switch Location
Control
RPM High (VI)
161
RPM Low (II)
28
RPM Medium (IV)
98
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60HZ
Watts Low
2
Watts Medium
8
Wet Rated
Yes
Manufactured By
Fanimation


Other Details:
  • 6765 CFM on High
  • Compatible with smart home devices using the Wi-Fi fanSync app
  • Dc Motor With Reverse Switch, Variable Speeds, Light Controls, Sleep Timer, Home Away, Fresh Air And Safe Exit Features
  • Marine Grade Black Finish
  • Set of (3) Marine Grade blades with Black or Matte White finish options available and 18 watt LED CCT Select light kit available (sold separately)
  • Tr305 Handheld Remote With 23a Battery Included
